Flashing UCX

Combi solution for installing multiple windows.

Pure flexibility: The UCX flashing is designed for installing two or more YARDLITE roof windows side by side or stacked on top of each other. It works with most common roofing materials and fits roof pitches between 15° and 90°. The system comes in different types of UCX flashing, giving you plenty of options for the best protection and performance for your roof windows.



Zdjęcie produktu

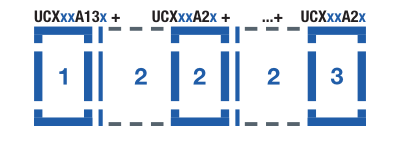

UCX 13 kit

Flashing kit 13
  • UCX 13 kit
    The UCX 13 kit allows you to install two roof windows side by side at a distance of 100/120/140 mm.
  • UCX 2 kit
    The UCX 2 kit allows you to install one roof window between two other windows at a distance of 100/120/140 mm. The UXC 2 flashing can only be installed in combination with the UCX 13 flashing.

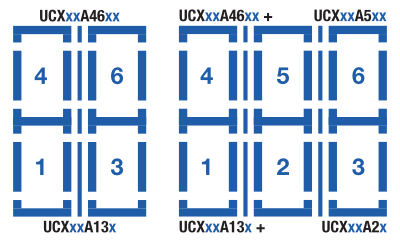

UCX 46 kit

Flashing kit 46
  • UCX 5 kit
    The UCX 5 kit enables a single roof window to be installed between two other windows where the windows are installed in two rows (minimum six windows at a time in combination – two rows of three windows). It can only be installed in combination with UCX 2, UCX 13 and UCX 46 flashings.
  • UCX 46 kit
    The UCX 46 kit allows you to install two windows above two other windows at a distance of 100/120/140 mm. The UXC 46 flashing can only be installed in combination with the UCX 13 flashing. UCX flashings are manufactured from aluminium that is resistant to all weather conditions, in a colour that matches the RAL7043 grey external finish of YARDLITE+ windows. The flashing has a tight-fitting apron that ensures tightness even in heavy rain and strong winds. UCX flashings are fully compatible with all YARDLITE+ windows.

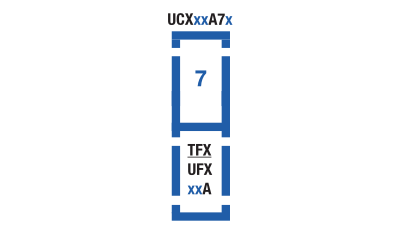

UCX 7 kit

Flashing kit 7
  • UCX 7 kit
    The UCX 7 set allows for the installation of one roof window above another. The UFX collar is also required for the installation.
